Product Name:Laser cutting engraving machine SF1390T

Product Details:
Model:
SF1390T
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 2999.00-5999.00 /Set
Shipping Terms:
1
Shippment Port:
qingdao,guangzhou,shanghai
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
29 Set/Sets
Delivery Time:
Packaging:
wooden box

Detailed Product Description:

SF1390 Laser  cutting machine



Specification:

Model

SF-1390

Processing area

1300*900mm

Laser tube

60W-150W

Engraving speed

1-60000mm/min

Cutting speed

1-10000mm/min

Cutting thickness

1-20mm Plexiglas(others determined by the material )

Minimum shaping character

Chinese :2*2mm; letter: 1*1mm

Support graphic format

DST, PLT, BMP , DXF

Resolution ratio

<0.01mm

Location precision

<0.01mm

Power supply

220V/50HZ

Operating temperature

5 – 40 centigrade degrees

Operating humidity

5%-95% Free of condensed water

Interface

USB

Specification

CE , FDA ,SGS

G.W.

300kg

Gross power

1500W-1800W

Information:

SF1390 laser engraving and cutting machine is a new laser equipment developed specially

according to the needs of the market. Avoid wasting the materials, it has a high beam of light and

cuts without contact and can avoid destroy. The kerf is narrow, the incision is smooth, the cutting

 force is strong, the cutting speed and the working efficiency are high.

Characteristics:

1. The imported beeline lead rail, imported stepper engine with the lower speed running structure,

the cutting is very stable, the cutting face is smooth.

2. High intention, high precision mechanic structure design, the data control is stable.

3. Choose high technical laser tube, the beam of light is of high quality and the life is long.

4. Input the American imported focusing lens and mental condensing lens, the cutting strength is

high.

5. Co figurate the industrial water cooling system with protection, the continuum work ability is

stable.

6. The compatibility of the software is good, which can support the format of PLT, BMP, DXF etc.

Applicable materials:

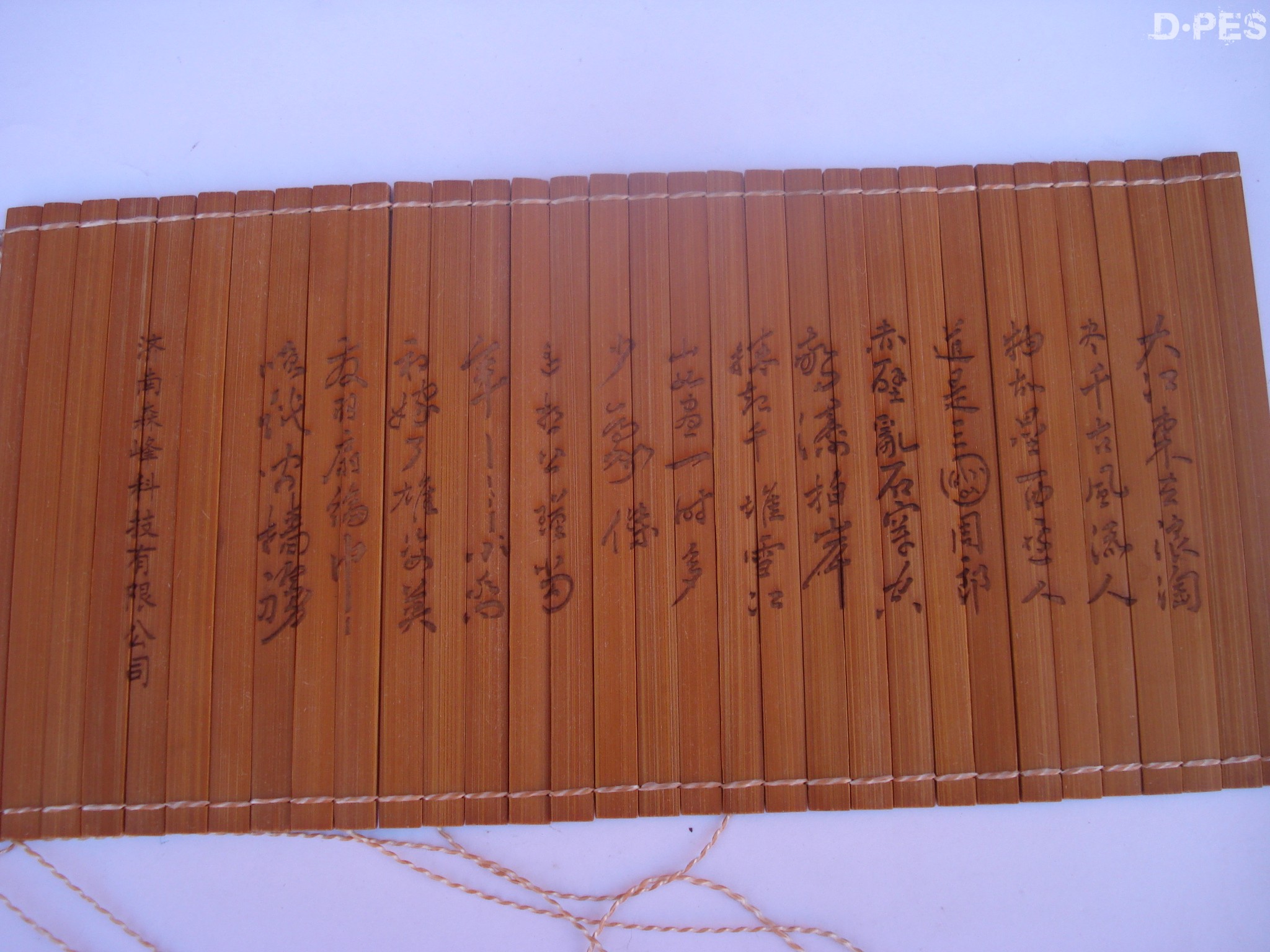

Non-metal materials such as double color board, Plexiglas, glass, bamboo and wood, rubber,

marble, granite and tiles, leather

Applicable industry:

Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and

 leather, embroidery, decoration and upholster industry.
